FuelTech is well stocked with all of the sensors and electronic components needed to build the ultimate engine and power management systems.
In stock are boost control solenoids, temperature sensors, MAP sensors, Oil Pressure sensors, a variety of O2 sensors, and much more.
In stock are boost control solenoids, temperature sensors, MAP sensors, Oil Pressure sensors, a variety of O2 sensors, and much more.

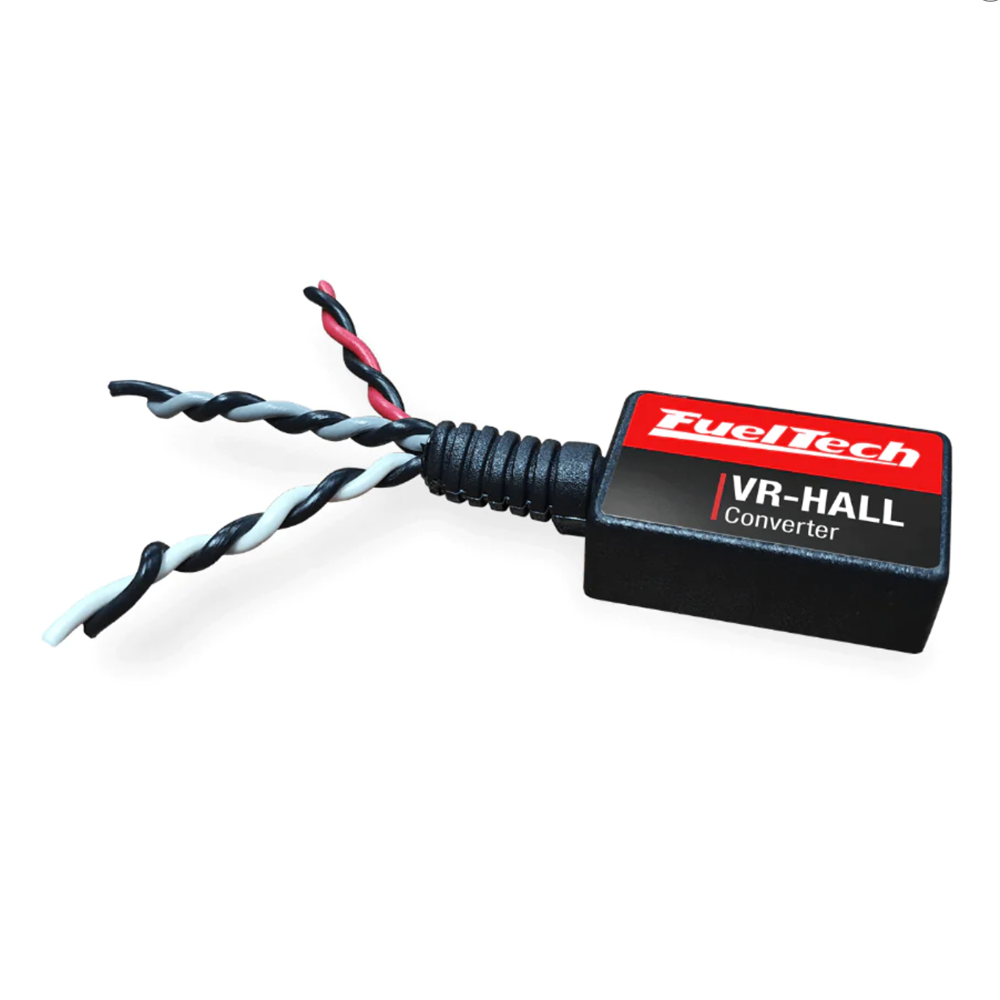

VR-HALL CONVERTER
Array
£87.00
Product Info
The VR-HALL converter was designed to read an analog VR signal and transform it to a digital signal (Hall). Recommended when using VR speed sensors (found in most ABS systems) or when using VR fuel flow meters. Not compatible with differential hall-effect or magnetoresistive sensors.
FEATURES
The FT Dual Power Driver has two half bridge outputs that allows the activation of up to 25A current. With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. Able to drive high speed PWM (using PWM ECU output). Its robust hardware brings very low delay on activation, allowing the use of controls that use high speed PWM signal.
TECHNICAL DESCRIPTION
- Power: 9V to 30V
- Max outputs current (total): 25A
- Peak current: 100A to 10ms
- Operating voltage: 9V to 30V
- Max operating frequency: 25KHz @ 30V
- Input trigger level LOW: <1.3V
- Input trigger level HIGH: >1.6V
- Switching delay: - High to low: 5.6 μs - Low to high: 6 μs
Dimensions:
DPD: 2.16 x 2.16 x 1.10 in (W x H x L)
Weight:
FT Dual Power Driver: 7.76 oz
Package DPD: 0.00 oz
Contents of packaging:
1 FT Dual Power Driver;
1 Users Manual
1 Mounting kit
