FuelTech has released a variety of engine harnesses for popular engine combinations as well as adapters to swap an older FT ECU to a newer one. Also available are un-terminated harnesses for the various FT ECUs and accessories like FTSPARK and Peak & Hold systems..

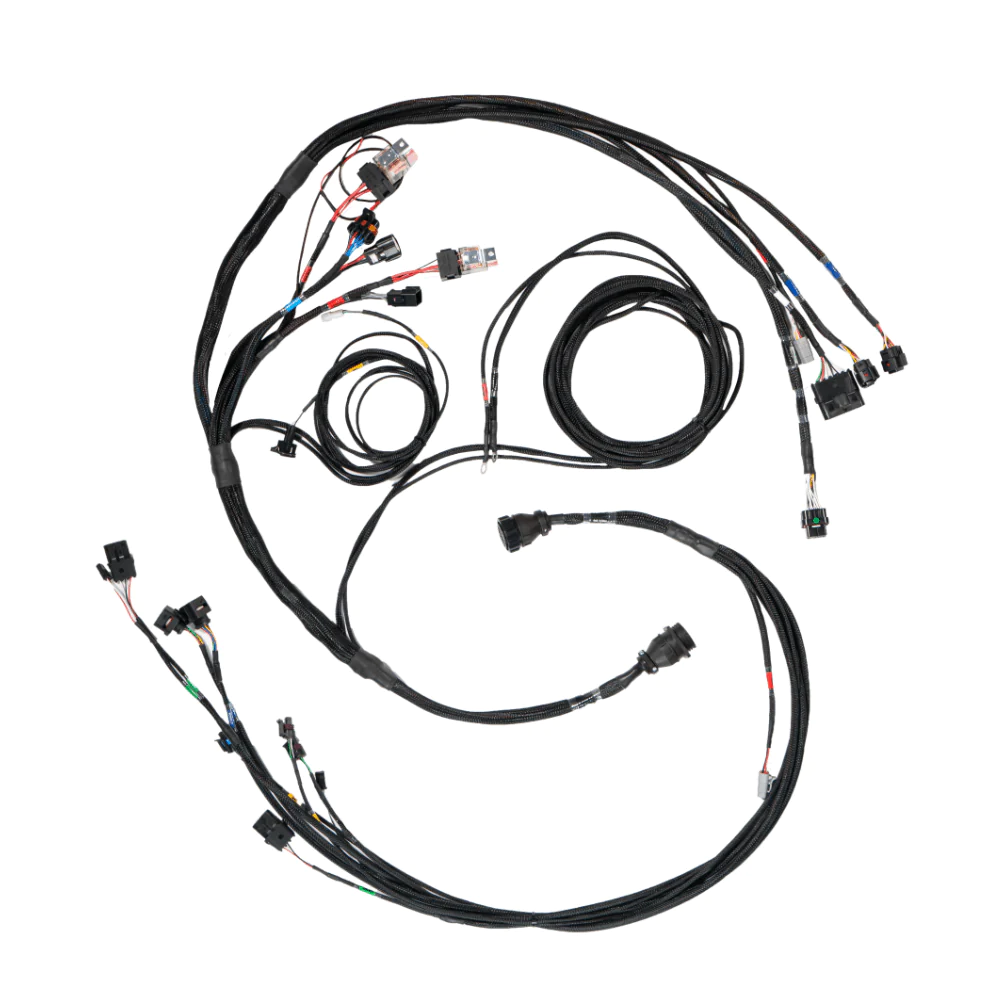

FT450/550 SPORTSMAN DATALOGGING A HARNESS
Array
£699.00
Product Info
The FuelTech FT450 / FT550 Sportsman Datalogging A Harness is a plug and play solution to easily incorporate datalogging into any setup equipped with an FT450 or FT550 ECU. It comes pre-terminated to plug directly into essential data logging input channels (see features below) and has an extra input connector to add up to two more configurable inputs for sensors or buttons. It is also equipped with two extra connectors that allow the use of 10 outputs to control EFI fuel Injectors, ignition control through a CDI box with points input or smart coils (8 coils on wasted spark is not recommended for carbureted V8 applications). The outputs can also be used to control accessories such as transbrake, shifter, nitrous, throttle stop, fans, pumps, etc. The harness is set up for either VR or Hall effect cam and crank sensors and includes 2 relays with built in fuses for main electronics, injectors and coils. Each connector has its own label and harness insulation is heat, moisture and oil resistant.
